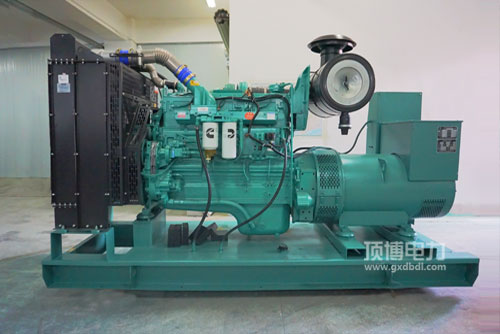

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯来发电用启行为然油经济实惠性好: 较为先进的然油掌握程序，独具特色的STC、ESTC 等级掌握程序，特殊化设计构思的活塞杆顶面焚烧室，各类高压喷出然油，充沛做雾化，焚烧充沛。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电站用打着机瞬态特点高品质: 精致的打着机局部设计方案，互相配合康明斯现代感的EFC设备，操控误差高，反映时快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电机组用打火机升工作功率高: 产品 制作狭窄.形态布置准备合情合理，运营顺畅。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷舱位 QSNT. QSK19. QSK38. QSK50实现中华非发展第一的时候及美国Tier2. Tier 3排放量相关法律法规规定要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备用件必须性好， 启动因开机运行及保障的保养便民，投入低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

功效时间范围 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观设计尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净产品 Dry Weight   940kg

224-310KW康明斯生产发电用打着机的特色：量小， 压缩视频比低， 防雨百叶大气微波加热，方便重新启动，转移车载电子供电的首先。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

热车机规格	较为常用公率(kW)Prime Power	应急额定功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
